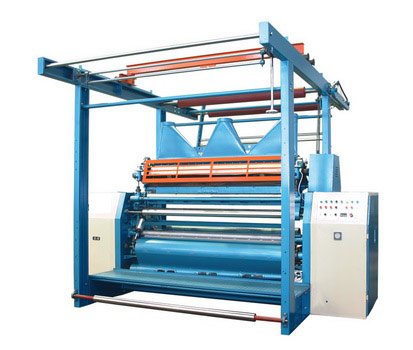

MB373D SINGLE CUTTER SHEARING MACHINE

Application:

Model MB373D shearing machine is mainly used for shearing hards or thread end on the surface of woolen fabric, cotton fabric and embroidery.

Feature:

  • The speed of shearing cylinder is adjusted by a pair of V-belt pulley, which with two steps. The fabric is adjusted by inverter.
  • Lifting of shearing cylinder: pneumatic.
  • Seam detector, electric alarm, button control, shearing blades lift up by pneumatic.
  • Transimission of fabric: Forward and inching back.
  • Height of shearing: Instrumnt display.
Item Data
Nominal width 1800 2200
Fabric speed 4.8-48 variable
Diameter ф145
Number of spiral 20
Cylinder Rotation rate 290,1000 (two steps)
Motor power(Not include dust exhaustor) 5.89 7.01
Overall dimensions 3680x3710(4110)x3155
Machine weight 3500 4300

ME503E SINGLE CUTTER SHEARING MACHINE

Application:

Model ME503E is suitable for the surface shearing of knitting fabric and woolen fabric.

Model ME503E(C) is suitable for the surface shearing of all kinds of knitting fabric. Model ME503E(L) is suitable for the surface shearing of woolen fabric when combining machines. The fabric after shearing is slippery with short, it improves the value of fabric.

Feature:

  • Controlled by man-machine conversation and PLC.
  • The rotating speed of the cylinder is raised to 1200 r/min which increases times of shearing in the unit length on the fabrics.
  • Seam detector, electric alarm, button control, shearing blades lift up by pneumatic.
  • The cylinder rotating speed, the fabric speed and fabric tension are controlled by inverters.
  • When a fabric seam is detected, a buzzer alarms and the shearing cylinder should be lifted manually.
  • When a fabric seam is detected, a buzzer alarms and the shearing cylinder should be lifted manually.
  • According to shearing processing, the fabric can be inching back.
  • Lubrication fo shearing cylinder is automatic.
  • The shearing cylinder lift up by pneumatic to facilitate the maintenance of shearing blade.
  • A traversing mechanism, which is smoothly driven by a reduction gear motor via an eccentric wheel, is used for shearing cylinder grinding on the machine.
Item Unit Data
Nominal width mm 1800 2200
Fabric speed m/min 5~35 infinitely variable
Shearing cylinder Diameter mm 180
Width mm 1810 2210
Number of shearing blades 24
Rotating speed r/min 250~1200 infinitely variable
Max. distance between shearing blade and fabric table when shearing mm 15
Motor power (not including blower and air compressor ) kW 10.5
Dimensions L mm 3680
W mm 3835 4235
H mm 2975

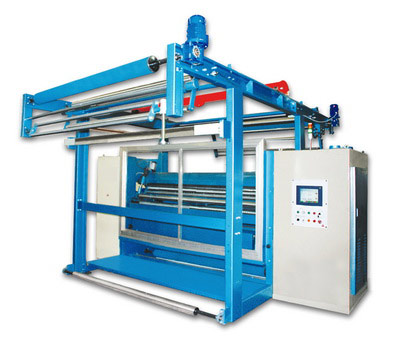

ME509A PRECISION SHEARING MACHINE

Application:

There are three models of this machine: Model ME509A is mainly used for surface shearing of woven fabric such as leather based cloth and so on. ME509A(C) is suitable for shearing of knitting fabric, curls, hairiness or thread end on the surface of weaving, towel fabric, loop fabric and decorating fabric. Model ME509A(M) is used in surface shearing of woolen and worst fabrics.

Feature:

  • Shearing Cylinder can be adjusted variably by inverter, with traversing device and grinding blade on the machine is realized. The shearing blades are universal use with model ME503 breed of shearing machines.
  • Adopted swing fabric table seat when meet fabric seam which makes sturcture action more stable, avoided shock motion and distortion of shearing blade.
  • Fabric feeding roller, fore guiding roller, main guiding roller and fabric output roller controlled by inverter respectively, fabric speed and tension can be adjusted variably. Fabric reverse with constant tension is realizable. Three sections of fabric tension adjusting: Fabric feeding tension is between tightening bracket and the position from feeding roller to fore guiding roller, it is controlled by speed difference between feeding roller to fore guiding roller. Shearing tension is controlled by speed difference between main guiding roller and fore guiding roller. Fabric output tension is controlled by speed difference between main guiding roller and fabric output roller. Adopted tension detector in feeding area and output area respectively which controlls the tension change accurately and keep steady. Change the fabric tension by setting in the touch screen.
  • Main shaft bearing of shearing cylinder is adopted imported double row needle roller bearing and spherical spherical base which improves dynamic compactness of knife edge.
  • The adjusting of shearing height is driven by servo motor, detected by beeline potentiometer, digital display and easy to operate.
  • Adopted seam detector, when it detects seam, the machine will electric alarm, and the shearing cylinder lift up automatically or manually.
  • The shearing cylinder lift up by pneumatic to facilitate the maintenance of shearing blade.
  • Various optional parts to suit different processes. 9.The machine is high automatic control, easy and safe to operate.

Main technical data:

Item Data
Working width（mm） 1800 2200
Fabric speed（m/min) 5～40 infinitely variable
Shearing cylinder Diameter（mm） 180
Number of shearing blades 24
Rotating speed（r/min） 250～1000 infinitely variable
Max. shearing height（mm） 15
Motor power (not including blower and air compressor ) （kW） 12
Pneumatic pressure（Pa） 5×105（5kgf/cm2）
Overall Dimensions L（mm） 4810 W（mm） 4110 4510 H（mm） 2965
Machine weight（kg） 3900 4300

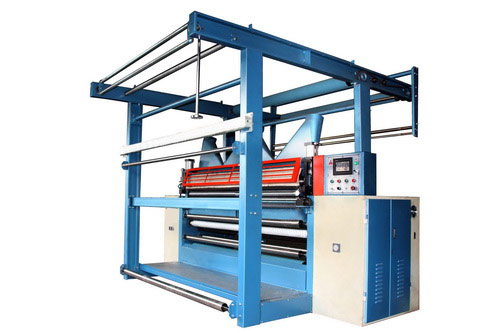

ME510 SINGLE CUTTER SHEARING MACHINE

Application:

This machine is suitable for shearing of knitting fabric, curls such as short pile fabric and velvet. The surface of fabric become neat and artistic after shearing.

Main technical data
Nominal width 2200mm
Fabric speed 5～35m/min
Shearing cylinder diameter 185mm
number of shearing blades 24pcs
rotating speed 230～1150r/min
Ledger width 125mm
Motor power (Not including blower and air compressor) 10kW.

Feature:

  • Shearing cylinder and main guiding roller are driven by respective motor and can be adjusted variably by inverter. Easy to change the fabric tension and speed. Adopted touch screen, digital Display.
  • The relative position of shearing cylinder and fabric table can be adjusted in length and breadth easily.
  • The bearing of shearing cylinder adopts special structure, the distance can be adjusted and high precision smooth running.
  • The traversing device of spiral blade can be chosen when shearing fabric or grinding blade.
  • Adopted seam detector, electric alarm and protection switch, safe operation

ME508 BROAD WIDTH SHEARING MACHINE

Application:

The machine is mainly used in shearing curls、hairiness or thread end on the surface of weaving、knitting、towel fabric、loop fabric and decorating fabric, and also used in surface shearing of woolen and worst fabrics.

Feature:

  • Controlled by man-machine conversation and PLC, the speed of shearing cylinder and fabric are adjusted by inverters.
  • Adopted the replacing cutting table (patent) to effect the optimal control for different fabric..
  • The shearing cylinder lift up by pneumatic to facilitate the mainte- nance of shearing blade.
  • Adopted seam detector, when it detects seam, the machine will electric alarm, and use a triangular cutter platform to pass the seam. 5.Lubrication of shearing cylinder is Automatic(optional).

Main technical data:

Item Data
Nominal width 2600 3200
Fabric speed 5-35 variable
Diameter ф183
Shearing Length 2610 3210
Number of spiral 24
Rotation rate 250-1200 variable
Max. shearing height(mm) 20
Motor power(Not include dust exhaustor) 13.7
Air pressure (PA) 5x105(5kgf/cm2)
Overall dimensions 3860x4880(5480)x3155
Machine weight 5000 5500

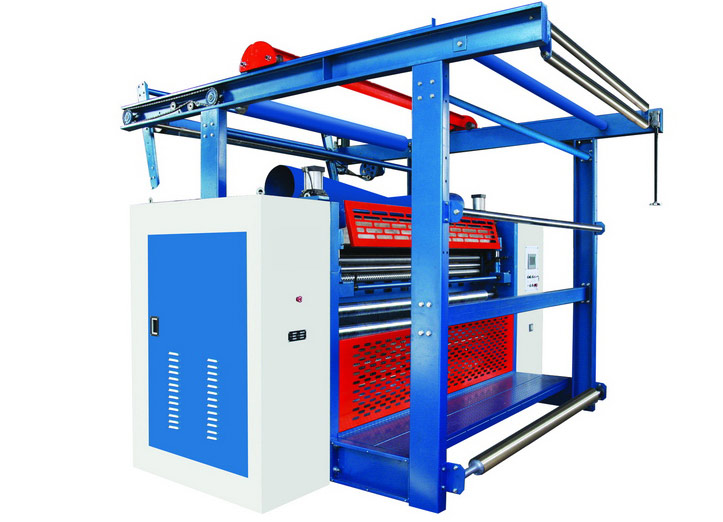

ME511 SINGLE CUTTER SHEARING MACHINE

Application:

The machine is mainly used in shearing curls、hairiness or thread end on the surface of weaving、knitting、towel fabric、loop fabric and decorating fabric.

Main technical data

Item Data
Nominal width (mm) 1800/2200
Fabric speed (m/min) 5～40
Diameter (mm) ф185
Shearing Cylinder
valid lentgh (mm) 1800/2200
number of shearing blades (pcs) 24
rotating speed (rpm) 100～1200
Motor power (Not including blower and air compressor) (kW) 11
Weight (kg) 3800/4200
Overall dimensions L（mm） 3680
W （mm） 3865/4265
H （mm） 2975

Feature:

  • The structure is simple and strong to make the machine more stable and reliable.
  • The relative position of shearing cylinder and fabric table can be adjusted in length and breadth easily.
  • Shearing cylinder, main guiding roller, fore guiding roller and fabric output roller are driven by respective motor and can be adjusted variably by inverter.
  • A second spreading before shearing to avoid fabric creases.
  • The traversing device of spiral blade can be chosen when shearing fabric or grinding blade.
  • According to shearing processing, the fabric can be driven pulse by pulse and even inversely.
  • Pneumatic lifting device and crane device to save labor and easy for maintenance.
  • Adopted seam detector, electric alarm and protection switch, safe operation.
