Pioneers in the industry, we offer tumble dryer from India.
Product Details:
| Minimum Order Quantity | 1 Piece |
| Capacity (kg) | 15 KG to 200 KG |
| Main Door Opening | 500 to 1000 |
| Dimensions | 890X1170X1740 mm |

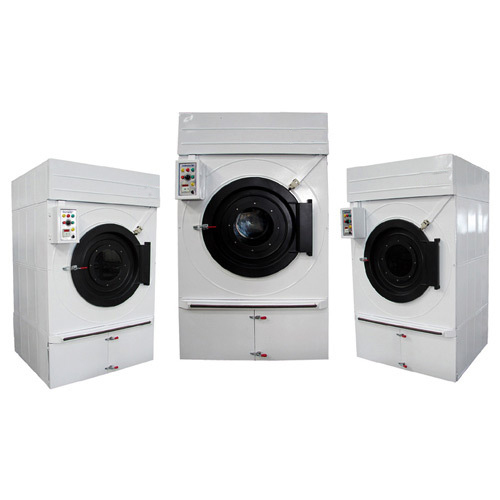

We are providing our clients with industrial tumble dryers that are especially manufactured for hosiery, dyeing industries, export houses, towel plants, denim processing industries, home furnishing & laundries. Highly efficient, industrial tumble dryers are available in self unloading titled models, which reduces unloading time The heating system of these dryers are offered with steam, electric, indirect oil and gas fired as per the requirement of our clients. These machines are front loading and are available with die pressed large dia door, inner rotating basket made from stainless steel, outer body double walled insulated with glass wool, high power suction blower for fast drying.
The automatic control panel of industrial tumble dryer has the following features:
Technical Specifications:
| Model | Capacity Dry Wt.0 X Deptd | Basket Size 0 X Deptd | Drive Motor/ Blower Motor | Main Door Opening | Heating | Overall Dimensions Wxdxh | |||
| Steam Connection Consumption | Electric | Thermic Fluid Connection | Diesel Consumption | ||||||
| DTS 15 DTE 15 DTT 15 |
15KG 15KG 15KG |
800 X 600 | 0.37 KW 0.37 KW |
500 | 0.5" BSP 20KG./Hr. |
12 KW | 0.5" X 0.5" BSP 10000 Kcal/Hr. |
-- | 890X1170X1740 |
| DTS 25 DTE 25 DTT 25 DTD 25 |
25KG 25KG 25KG 25KG |
950 X 850 | 0.75 KW 0.75 KW |
650 | 0.5" BSP 40Kg./Hr. |
12 / 24 KW | 0.5" X 0.5" BSP 20000 Kcal/Hr. |
1.5-2 Ltrs./Hr. | 1050X1460X1980 |
| DTS 50 DTE 50 DTT 50 DTD 50 |
50KG 50KG 50KG 50KG |
1250 X 990 | 1.5 KW 1.5 KW |
800 | 0.5" BSP 80Kg./Hr. |
36 / 48 KW | 1.0" X 1.0" BSP 40000 Kcal/Hr. |
2.5-3.5 Ltrs./Hr. | 1350X1690X2300 |
| DTS 100 DTT 100 DTD 100 |
100KG 100KG 100KG |
1600 X 1200 | 2.25 KW 1.5 KW (2 Nos.) |
1000 | 1" BSP 150Kg./Hr. |
-- | 1.5" X 1.5" BSP 80000 Kcal/Hr. |
5.5-6.5 Ltrs./Hr. | 1750X2190X2750 |
| DTS 200 DTT 200 DTD 200 |
200KG 200KG 200KG |
2030X1450 | 3.75 KW 2.25 KW (2 Nos.) |
1000 | 1" BSP 200Kg./Hr. |
-- | 1.5" X 1.5" BSP 150000 Kcal/Hr. |
11-16 Ltrs/Hr. | 2210X2750X3250 |
